Carbon Fiber Hot Press Molding Machine Selection Guide: Precision & Efficiency for High-Performance Manufacturing
π Enhance Production Efficiency and Ensure Product Quality in the Carbon Fiber Composites Industry
The carbon fiber hot press molding machine is a crucial piece of equipment in manufacturing aerospace, automotive, electronics, and sports equipment components. How do you choose the right machine for your needs? This guide provides an in-depth analysis to help you make an informed decision for efficient production.
1. Industry Challenges: Why Is Choosing the Right Hot Press Molding Machine Essential?
Carbon fiber composites are widely used due to their high strength, lightweight properties, and corrosion resistance. However, common challenges in the production process include:
β Uneven molding β Inaccurate temperature control leads to insufficient or excessive curing
β Low production efficiency β Manual loading/unloading and slow cooling reduce output
β Material waste β Uneven pressure distribution results in high defect rates
β Unstable equipment β Traditional machines consume excessive energy and have high failure rates
π Solution: Choosing a carbon fiber hot press molding machine with precise temperature control, efficient automation, and stable pressure distribution can help overcome these issues, improving both production efficiency and product quality.
2. Solutions: How to Select a High-Performance Carbon Fiber Hot Press Molding Machine?
π Key Technical Features & Performance Indicators
πΉ Temperature Control
β Temperature Range: 140Β°C – 400Β°C, suitable for various carbon fiber resin systems
β Precision: Β±1Β°C to ensure uniform heating and prevent defects
β Heating Methods: Electric heating (for precision applications) & Oil heating (for large parts)
πΉ Pressure Control
β Pressure Range: 10 – 200 tons to accommodate different carbon fiber products
β Precision: Β±0.5% to ensure consistent product quality
β Even Pressure Distribution: Multi-point balanced pressing system to prevent deformations
πΉ Molding Area & Production Efficiency
β Worktable Size: 650mΓ750m / 1000mΓ1000m / Customizable
β Supports multi-layer molds for 30% efficiency improvement
πΉ Cooling System
β Water circulation system for rapid cooling and shorter molding cycles
πΉ Automation
β Intelligent PLC + touchscreen control for one-click settings of temperature, pressure, and time
β Automatic loading & unloading system to reduce labor costs by 50%
3. Machine Structure & Energy Efficiency Design
πΉ Frame Structure
β C-frame: Suitable for small machines, easy operation
β Four-column frame: Ideal for large machines, strong load-bearing capacity and stability
πΉ Energy Efficiency Optimization
β Servo-driven system reduces energy consumption by 30%
β High-efficiency insulation materials to minimize heat loss
πΉ Environmental Design
β Exhaust gas treatment system to reduce harmful emissions
β Supports carbon fiber waste recycling to minimize material waste
4. Control System: Smart Operation for Consistent Production
πΉ PLC Intelligent Control System
β Precisely controls temperature, pressure, and time for stable processing
β User-friendly touchscreen interface for easy parameter monitoring
β Data logging and analysis for production tracking and process optimization
πΉ Remote Monitoring & Industrial IoT (IIoT) Integration
β Connects to MES systems for real-time production monitoring and data visualization
5. Selection Guide: How to Choose the Best Machine for Your Needs?
β Define Your Requirements
πΉ Product Type: Large structural parts (aerospace) or small precision components (electronics)?
πΉ Production Volume: Mass production or low-volume, multi-variety production?
πΉ Material Properties: Required resin type and curing temperature?
β Evaluate Machine Performance
πΉ Does it offer precise temperature control and even pressure distribution?
πΉ Does it support automation to improve efficiency?
πΉ Does it have an efficient cooling system to shorten production cycles?
β Consider Brand & After-Sales Support
πΉ Choose a manufacturer with extensive industry experience and a strong reputation
πΉ Ensure installation, training, and after-sales service are included
πΉ Check spare parts availability for long-term maintenance support

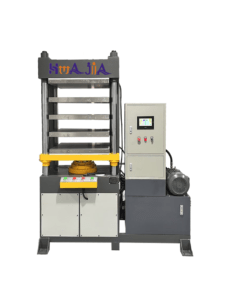

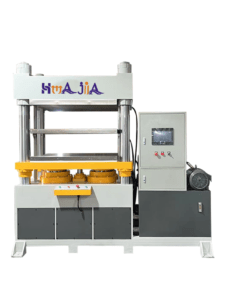

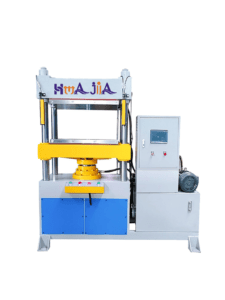

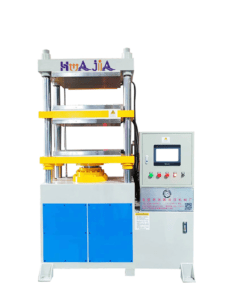

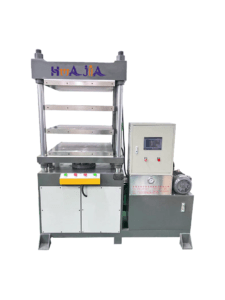

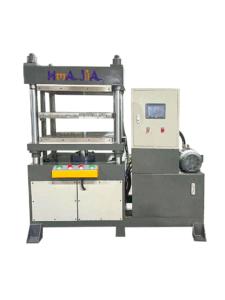

6. Recommended Models: HUAJIA Carbon Fiber Hot Press Molding Machine β Your Smart Manufacturing Solution!
π HUAJIA Intelligent Carbon Fiber Hot Press Machine | Ideal for Aerospace, Automotive, and Electronics Industries π
| Model | Worktable Size | Pressure Range | Temperature Range | Heating Method | Applications |
|---|---|---|---|---|---|
| HJ-50T | 650mΓ750m | 10-50 tons | εΈΈζΈ©Β°C-400C | Electric heating | Electronics, sports equipment |
| HJ-100T | 1000mΓ800m | 10-100tons | εΈΈζΈ©Β°C-400C | Electric/Oil heating | Automotive interiors, drone components |
| HJ-300T | 1300mΓ1000m | 10-300 tons | εΈΈζΈ©Β°C-400C | Electric/Oil heating | Aerospace, carbon fiber structural parts |
π― Key Advantages:
β
Intelligent temperature control with Β±1Β°C accuracy to prevent uneven curing
β
Servo-driven system reduces energy consumption by 30% and boosts production efficiency by 40%
β
Supports multi-layer molding for higher productivity
β
PLC + touchscreen interface for smart process control
7. Contact Us Now for a Custom Solution!
π‘ Not sure which machine suits your production needs best?
π Contact us for expert selection advice & a free quote!
π π Click the button below to get your personalized carbon fiber hot press molding solution! π
π₯ Why Choose HUAJIA?
πΉ 15+ years of industry experience, trusted by 200+ global customers
πΉ 100% customized solutions to meet various carbon fiber molding requirements
πΉ Reliable after-sales support with 24/7 technical assistance
π HUAJIA Carbon Fiber Hot Press Molding Machine β Elevate Your Manufacturing Efficiency!
